API Reference

The API Reference page is for developers and platform maintainers who need to inspect, test, or integrate with the ElasticBLAST OpenAPI surface directly. Most researchers should keep using the Dashboard, New Search, Jobs, and Results pages for day-to-day work.

Quick jumps

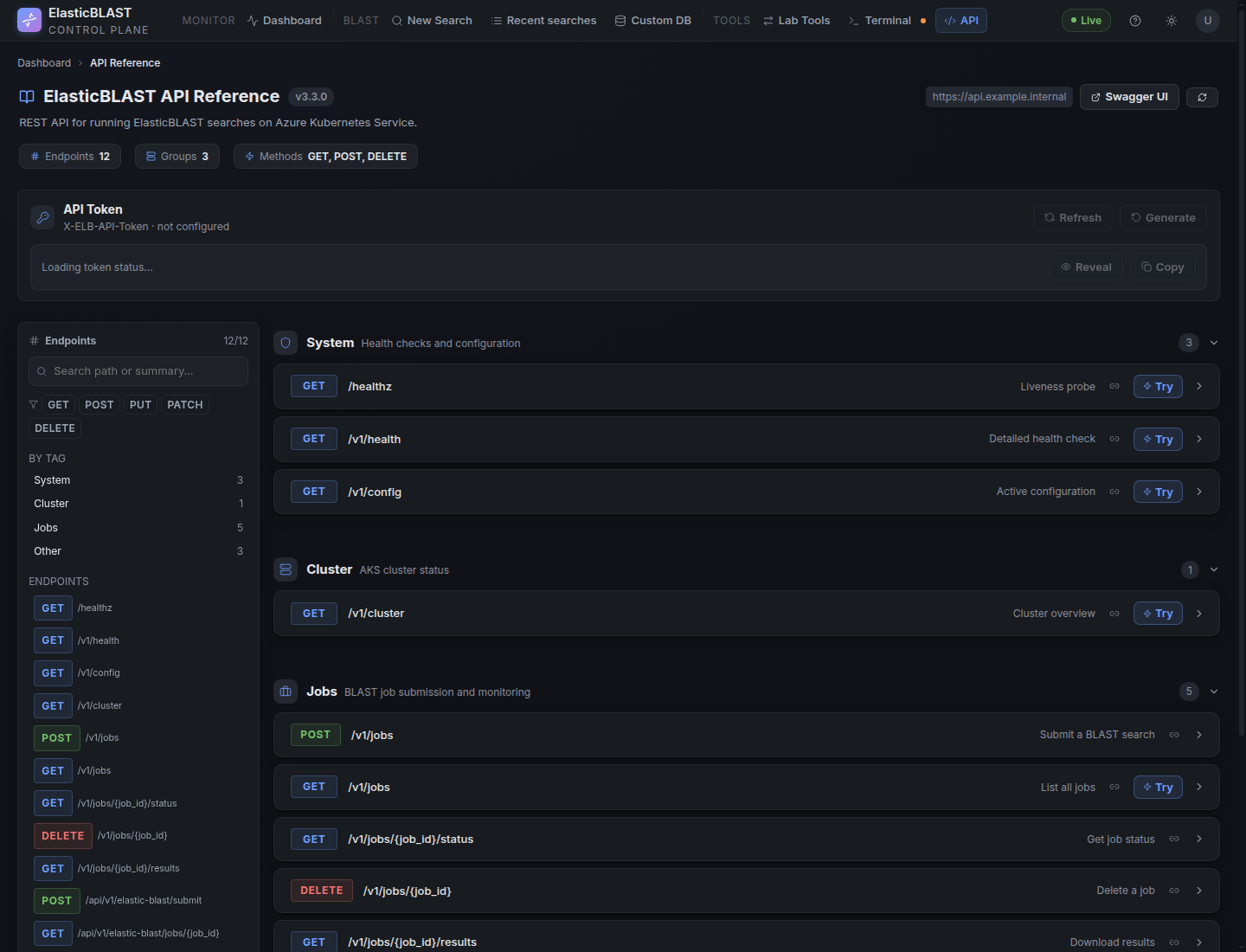

API Reference page with endpoint groups and API menu selected

When To Use It

Goal Best surface
Run a normal BLAST search and inspect results New Search, BLAST Jobs, and Results
Check whether the OpenAPI service is available API Reference
Generate or copy the API token API Reference token panel
Test one endpoint from the browser API Reference endpoint cards
Wire an external workflow or notebook API Reference plus copied curl examples
Explore the raw OpenAPI schema Swagger UI from the API Reference hero

For submitting production BLAST searches, prefer the New Search page unless you are validating an integration path. API calls can create AKS workload, consume prepared databases, and produce result files just like the UI path.

Before The API Page Works

The API Reference page is a live view of the OpenAPI execution service running on Azure Kubernetes Service (AKS). If the page is empty or shows a setup state, check these prerequisites in order:

Requirement Where to fix it What it unlocks
Workspace config is saved Dashboard setup wizard or resource settings Subscription, resource group, Azure Storage, and Azure Container Registry (ACR) discovery
AKS is running Dashboard Cluster Plane Service discovery and job execution
elb-openapi image exists Dashboard ACR card OpenAPI pod deployment
OpenAPI service is deployed API Reference deploy/update panel /openapi.json, endpoint cards, and Swagger UI
API token is configured API token panel External X-ELB-API-Token calls and in-page Try requests
BLAST database is prepared and warm Dashboard BLAST Databases and warmup controls Successful, faster submit/result workflows

If the page says Configure Subscription and Workload RG, go back to the Dashboard and complete workspace selection first. If it says OpenAPI service not found, build the elb-openapi image and deploy the service from the panel shown on this page.

Page Tour

The API Reference page is organized as a compact work surface:

  • Hero: shows API version, endpoint count, groups, HTTP methods, base URL, Swagger UI link, and refresh.
  • Token panel: shows X-ELB-API-Token status and provides Generate, Regenerate, Reveal, and Copy actions.
  • API response contract panel: explains the additive operation, target, admission, and meta fields used by asynchronous dashboard-backed responses.
  • Sidebar: groups endpoints by tag and method so long specs stay navigable.
  • Endpoint cards: show method, path, summary, path/query/body fields, request examples, response schema, Try, and copy-link controls.
  • Response viewer: shows HTTP status, response JSON, and copy actions after a request runs.

The left sidebar groups endpoints by method and tag. Use it to move quickly between system checks, cluster status, job submission, job monitoring, and result download routes.

Expanded response cards show the response shape, next action, key fields, and a JSON example when the OpenAPI document publishes a schema or when the dashboard provides a curated example for high-value routes such as GET /v1/cluster. If a route does not publish a response schema, the card says so instead of showing an empty success panel.

Safe Try Policy

The Try button is useful, but endpoint risk is not equal:

Endpoint kind Examples Guidance
Read-only GET /v1/health, GET /v1/config, GET /v1/cluster, GET /v1/jobs Safe to test while debugging readiness.
Job state read GET /v1/jobs/{job_id}/status, GET /api/v1/elastic-blast/jobs/{job_id} Safe when using the correct OpenAPI job id.
Data download GET /v1/jobs/{job_id}/results, GET /api/v1/elastic-blast/jobs/{job_id}/files/{file_id} Downloads can be large; choose content=xml or one file when possible.
Mutating or cost-bearing POST /v1/jobs, POST /api/v1/elastic-blast/submit, OpenAPI deploy/update actions Use only after AKS, database, sharding, and warmup readiness are understood.
Destructive DELETE /v1/jobs/{job_id} Avoid casual Try; this cancels/deletes tracked job state.

Authentication

The API token panel shows whether the shared X-ELB-API-Token value is configured for the sibling OpenAPI service. External clients must send this token when calling the OpenAPI endpoint directly.

The shared deployment also sets ALLOW_OPENAPI_TOKEN_AUTH=true, which lets the same token authenticate programmatic calls to every dashboard route guarded by require_caller, including mutating routes. That universal path maps to a synthetic M2M caller and has no caller-specific Azure RBAC identity. Keep ingress controlled, treat the token as an administrator credential, and set the gate to false when only interactive MSAL callers should reach dashboard APIs. See the Feature Gate Registry.

API token panel showing the Copy action

Use Copy in the token panel, then add the copied value as an HTTP header:

X-ELB-API-Token: <copied-token>

For example:

curl -H "X-ELB-API-Token: <copied-token>" \
    "https://api.example.internal/v1/jobs"

The API Reference page's Try buttons use the same token internally. When you click Try from the browser, the dashboard forwards the request with the configured X-ELB-API-Token; you do not need to paste the token into the Try request manually.

Keep the token hidden in screenshots, demos, and shared notes. Regenerate it only when rotating integration credentials or recovering from a suspected exposure.

The browser dashboard still uses its MSAL bearer. The shared token is the automation credential for direct OpenAPI calls and, while the universal gate is enabled, dashboard API calls.

Submit, Status, Results: Browser Flow

This is the shortest end-to-end API Reference path for a test job.

  1. Confirm the Dashboard has a prepared database such as core_nt.
  2. Confirm AKS is running and the selected database is warm or warming.
  3. Open API Reference and confirm the token panel says configured.
  4. Expand POST /v1/jobs, choose the inline FASTA example, and click Send Request.
  5. Copy the returned short job_id.
  6. Expand GET /v1/jobs/{job_id}/status, paste that OpenAPI job id, and poll until status is completed and results_ready is true.
  7. Expand GET /v1/jobs/{job_id}/results, paste the same job id, choose a content mode, and download the artifact.

POST /v1/jobs with query_fasta and a job_id response

Submit Example: POST /v1/jobs

Use POST /v1/jobs when you want the core OpenAPI service contract. The inline FASTA mode is the easiest way to test because the server uploads the query and resolves Storage paths for you.

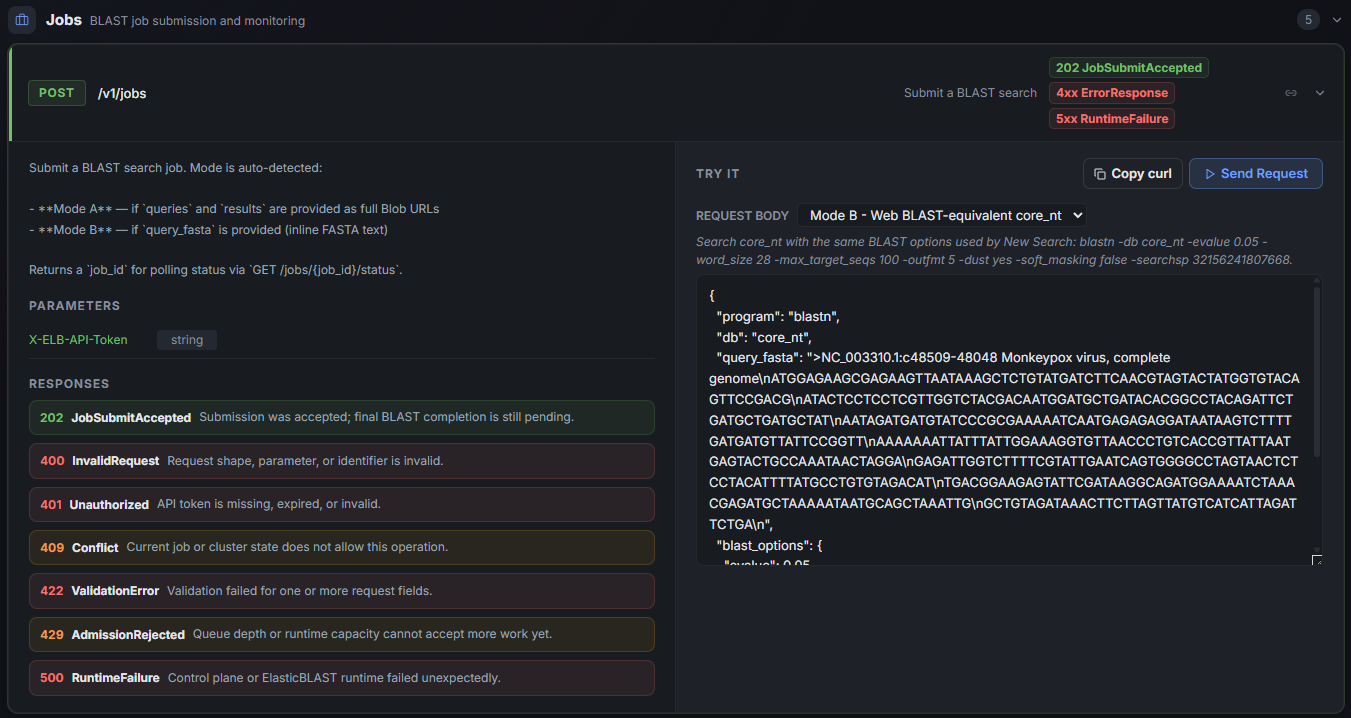

POST /v1/jobs endpoint card showing the response codes 202, 400, 401, 409, 422, 429, and 500 with the Try It request body

The endpoint card lists every response code the OpenAPI service can return for POST /v1/jobs. See Error Codes below for the full meaning of each 4xx and 5xx row, including the response body shape used for 500 RuntimeFailure.

The example below uses the same core_nt monkeypox query shown in the result XML sample later in this guide. Keep the FASTA as a single JSON string with \n between FASTA lines.

{
  "program": "blastn",
  "db": "core_nt",
  "query_fasta": ">NC_003310.1:c48509-48048 Monkeypox virus, complete genome\nATGGAGAAGCGAGAAGTTAATAAAGCTCTGTATGATCTTCAACGTAGTACTATGGTGTACAGTTCCGACG\nATACTCCTCCTCGTTGGTCTACGACAATGGATGCTGATACACGGCCTACAGATTCTGATGCTGATGCTAT\nAATAGATGATGTATCCCGCGAAAAATCAATGAGAGAGGATAATAAGTCTTTTGATGATGTTATTCCGGTT\nAAAAAAATTATTTATTGGAAAGGTGTTAACCCTGTCACCGTTATTAATGAGTACTGCCAAATAACTAGGA\nGAGATTGGTCTTTTCGTATTGAATCAGTGGGGCCTAGTAACTCTCCTACATTTTATGCCTGTGTAGACAT\nTGACGGAAGAGTATTCGATAAGGCAGATGGAAAATCTAAACGAGATGCTAAAAATAATGCAGCTAAATTG\nGCTGTAGATAAACTTCTTAGTTATGTCATCATTAGATTCTGA",
  "blast_options": {
    "evalue": 0.05,
    "max_target_seqs": 100,
    "outfmt": "5"
  },
  "priority": 50,
  "idempotency_key": "core-nt-monkeypox-smoke-001",
  "resource_profile": "standard"
}

That request maps to this BLAST command shape after the service resolves Storage paths:

blastn -db core_nt -evalue 0.05 -max_target_seqs 100 -outfmt 5 -query query.fasta -out results.out

Large databases need a large-memory node or sharding

resource_profile is free-form metadata only — it is echoed back on the job status but does not select a machine type or enable sharding. A full-database BLAST against a large database such as core_nt (~250 GB) needs a cluster node with enough memory (for example Standard_E32s_v5, 256 GB). On a smaller node the submit fails its memory pre-flight with BLAST database ... memory requirements exceed memory available on selected machine type. To run core_nt on a smaller node, submit from the Dashboard with the Sharded throughput execution profile (it partitions the database so each shard fits node memory), recreate the cluster with a larger machine type, or choose a smaller database.

A successful submission returns 202 with a short OpenAPI job_id. Copy that value for polling; do not use the Dashboard UUID from a /blast/jobs/<uuid> page URL.

{
  "job_id": "17dfd2825089",
  "status": "queued",
  "queue_position": 1,
  "submission_source": "external_api",
  "created_at": "2026-05-21T06:15:30.125000+00:00",
  "blast_version": "2.17.0+",
  "db_name": "core_nt",
  "db_version": "2026-05-20-00-00-00",
  "message": "Poll GET /v1/jobs/17dfd2825089/status for progress.",
  "status_url": "/v1/jobs/17dfd2825089/status"
}

For an external client, send the same request with the API token header:

curl -X POST "https://api.example.internal/v1/jobs" \
    -H "Content-Type: application/json" \
    -H "X-ELB-API-Token: <copied-token>" \
    --data-binary @- <<'JSON'
{
  "program": "blastn",
  "db": "core_nt",
  "query_fasta": ">NC_003310.1:c48509-48048 Monkeypox virus, complete genome\nATGGAGAAGCGAGAAGTTAATAAAGCTCTGTATGATCTTCAACGTAGTACTATGGTGTACAGTTCCGACG\nATACTCCTCCTCGTTGGTCTACGACAATGGATGCTGATACACGGCCTACAGATTCTGATGCTGATGCTAT\nAATAGATGATGTATCCCGCGAAAAATCAATGAGAGAGGATAATAAGTCTTTTGATGATGTTATTCCGGTT\nAAAAAAATTATTTATTGGAAAGGTGTTAACCCTGTCACCGTTATTAATGAGTACTGCCAAATAACTAGGA\nGAGATTGGTCTTTTCGTATTGAATCAGTGGGGCCTAGTAACTCTCCTACATTTTATGCCTGTGTAGACAT\nTGACGGAAGAGTATTCGATAAGGCAGATGGAAAATCTAAACGAGATGCTAAAAATAATGCAGCTAAATTG\nGCTGTAGATAAACTTCTTAGTTATGTCATCATTAGATTCTGA",
  "blast_options": {
    "evalue": 0.05,
    "max_target_seqs": 100,
    "outfmt": "5"
  },
  "priority": "normal",
  "idempotency_key": "core-nt-monkeypox-smoke-001",
  "resource_profile": "standard"
}
JSON

Use idempotency_key for automation so a retry returns the same job handle instead of creating duplicate BLAST work.

Result selection and search space

blast_options.result_selection_policy controls the final subject set for partitioned tabular results:

Value Contract
native_top_n (default) Selects at most max_target_seqs distinct subject accessions using BLAST's e-value, raw-score, and database-order comparator. It does not promise sequence-content diversity. Every HSP row for a selected subject is retained, so the output can have more rows than subjects.
diversity_aware When one tied score class fills and overflows the complete result window, proportionally reserves slots for distinct lower-scoring subjects from the shard candidate pool. This is intentionally heuristic and does not claim full-database hit-list equality.
sequence_diversity For partitioned tabular outfmt 6/7 only. Groups observed HSP rows by (query identity, uppercase sseq with ASCII '-' removed, qstart, qend), ranks one representative per group with the existing BLAST comparator, and returns at most max_target_seqs groups per query.

sequence_diversity requires query identity, subject accession, sseq, qstart, qend, evalue, and bitscore in the caller's tabular layout. The server adds raw score before validating the effective layout. It does not add the other semantic fields or silently fall back to an existing policy.

{
  "blast_options": {
    "outfmt": "7 qseqid saccver sseq qstart qend evalue bitscore",
    "max_target_seqs": 100,
    "candidate_pool_size": 2000,
    "result_selection_policy": "sequence_diversity"
  },
  "resource_profile": "core_nt_safe"
}

The per-shard candidate cap defaults to 2000 when omitted. There is no fixed server maximum: an explicit value must be a positive integer greater than or equal to max_target_seqs, and remains the finite bound for that request. Larger values increase BLAST output, storage, and merge work. The merge report records requested/applied policy, identity version, observed rows, subjects and groups, expected/succeeded shards, cap saturation, and shortfall reasons. Its per-group detail list is limited to 5,000 entries with an explicit truncation flag; canonical results and aggregate counts are not truncated by that report limit. These counts describe the observed bounded candidate pool, not the entire database. observed_pool_complete=true means no observed shard/query set reached the configured cap; it is not a database-exhaustion claim.

The same accession may appear in several groups. A downstream parser that collapses HSPs by accession, computes union coverage, and then filters by identity or coverage can therefore return fewer than N accessions. Group counts cannot reconstruct accession-level union coverage.

Invalid output formats, missing fields, and invalid pools return HTTP 422 with sequence_diversity_invalid_outfmt, sequence_diversity_missing_fields, or sequence_diversity_invalid_candidate_pool. The response sets retryable=false and never includes query content. Misplaced fields, non-partitioned profiles, and Web statistical contexts are also rejected with sequence-specific 422 codes. Reusing an idempotency key that already names a job with different result-selection semantics returns HTTP 409 sequence_diversity_idempotency_conflict; it never returns the existing job as though the requested policy had been applied.

Result downloads remain compatible: content=full returns all shard files, content=merged returns a ZIP containing the policy-applied merged_results.out.gz, and content=xml retains its existing XML behavior for outfmt 5 jobs. Sequence diversity does not support XML and adds no new download mode. Compare policies by submitting separate jobs; one job has one canonical policy-applied result.

For core_nt, omit blast_options.db_effective_search_space, -searchsp, and -dbsize by default. The server resolves the active database generation and injects the matching search space. If an integration must pin a measured value, use the typed blast_options.db_effective_search_space field; do not combine it with raw -searchsp or -dbsize in extra.

blast_options.web_blast_statistical_context is an advanced single-query contract, not an alternative spelling for db_effective_search_space. Its six values must come from a measured reference result for the same query, taxonomy-filtered population, options, and database generation. Do not derive filtered_database_letters from the unfiltered GET /v1/databases/{db} count. When those measurements are unavailable, omit the context.

Reference context resolver

POST /v1/web-blast/statistical-context derives the six-field context from one completed NCBI BLAST RID. The endpoint is protected by the same X-ELB-API-Token dependency as the other /v1 routes. It retrieves XML1 and XML2 only from the fixed NCBI result URL; it does not submit a search, poll a pending RID, or accept a caller-supplied URL.

Send the exact single-record FASTA associated with the completed RID:

{
  "rid": "<completed-rid>",
  "query_fasta": "<exact single-record FASTA used by that RID>",
  "db": "core_nt",
  "taxid": 1234,
  "is_inclusive": false
}

The resolver checks the query length, core_nt identity, active database counts, database-length encoding, and all integer relationships used to derive the context. A successful response includes web_blast_statistical_context, query_effective_search_spaces, source hashes, and explicit verification flags.

A completed RID is evidence, not full request provenance

The result formats do not prove the original query content, taxonomy expression, every submit option, or the active source-version identifier. Confirm those inputs independently before copying the returned context into POST /v1/jobs. The response keeps the corresponding *_verified flags false and repeats this warning.

The endpoint returns 409 reference_not_ready with Retry-After: 30 for a pending RID, 422 reference_invalid for inconsistent evidence, and retryable 503 responses when the external result service, active database metadata, or bounded resolver gate is unavailable.

Status Example: GET /v1/jobs/{job_id}/status

After copying the OpenAPI job id, expand GET /v1/jobs/{job_id}/status, paste the value into the OpenAPI job id path parameter, and click Send Request.

GET /v1/jobs/{job_id}/status with a running job response

The response shows the current job lifecycle state. Early responses commonly move from queued to dispatching, submitting, and running. Completed jobs report completed and can be used with result routes.

{
  "job_id": "17dfd2825089",
  "status": "running",
  "phase": "running",
  "queue_position": null,
  "created_at": "2026-05-21T06:15:30.125000+00:00",
  "updated_at": "2026-05-21T06:18:14.402000+00:00",
  "last_progress_at": "2026-05-21T06:18:14.402000+00:00",
  "program": "blastn",
  "db": "https://stexample.blob.core.windows.net/blast-db/core_nt/core_nt",
  "resource_profile": "standard",
  "error": "",
  "kubernetes": {
    "summary": {
      "total": 4,
      "succeeded": 1,
      "failed": 0,
      "active": 3
    }
  }
}

For an external client:

curl -H "X-ELB-API-Token: <copied-token>" \
    "https://api.example.internal/v1/jobs/17dfd2825089/status"

Interpret status values conservatively:

Status Meaning Next action
queued Accepted but waiting behind active work Poll after a short delay.
dispatching / submitting The service is preparing ElasticBLAST execution Keep polling status.
running AKS BLAST jobs are active or finalizing Watch kubernetes.summary and keep polling.
completed Canonical result files and the durable success marker are available Confirm results_ready=true, then call a result endpoint.
failed / cancelled Work stopped before success Use error and operator logs for diagnosis.

Result Example: GET /v1/jobs/{job_id}/results

Use GET /v1/jobs/{job_id}/results after status is completed and results_ready is true. Partitioned responses also carry merged_at; results_ready_at is the common readiness timestamp. A merge finalizer has a 30-minute execution deadline. A deadline or terminal finalizer failure changes the job to failed with phase finalizer_failed, rather than leaving it in an unbounded finalizing state. The endpoint streams files through the OpenAPI service; it does not return Storage SAS URLs.

The content query parameter chooses the artifact shape:

content Response Use when
full ZIP with every shard *.out.gz / *.out file You need all raw shard outputs.
merged ZIP containing merged_results.out.gz You need the merged artifact but want to keep it compressed.
xml Gunzipped application/xml from merged_results.out.gz You want a direct BLAST XML response for parsing.

Browser path:

  1. Expand GET /v1/jobs/{job_id}/results.
  2. Paste the OpenAPI job id.
  3. Set content to xml for the smallest inspectable output, or full for all shard outputs.
  4. Click Send Request and save the returned file.

External client examples:

# Direct XML for parsers
curl -L -H "X-ELB-API-Token: <copied-token>" \
    "https://api.example.internal/v1/jobs/17dfd2825089/results?content=xml" \
    -o blast-results-17dfd2825089.xml

# Merged compressed output in a ZIP
curl -L -H "X-ELB-API-Token: <copied-token>" \
    "https://api.example.internal/v1/jobs/17dfd2825089/results?content=merged" \
    -o blast-results-17dfd2825089-merged.zip

# Full shard archive
curl -L -H "X-ELB-API-Token: <copied-token>" \
    "https://api.example.internal/v1/jobs/17dfd2825089/results?content=full" \
    -o blast-results-17dfd2825089.zip

When content=xml succeeds, the response body is BLAST XML. The example below shows a shortened result body with one hit and the required closing tags:

<?xml version="1.0" encoding="utf-8"?>
<BlastOutput>
  <BlastOutput_program>blastn</BlastOutput_program>
  <BlastOutput_version>BLASTN 2.17.0+</BlastOutput_version>
  <BlastOutput_reference>Zheng Zhang, Scott Schwartz, Lukas Wagner, and Webb Miller (2000), "A greedy algorithm for aligning DNA sequences", J Comput Biol 2000; 7(1-2):203-14.</BlastOutput_reference>
  <BlastOutput_db>core_nt</BlastOutput_db>
  <BlastOutput_query-ID>Query_1</BlastOutput_query-ID>
  <BlastOutput_query-def>NC_003310.1:c48509-48048 Monkeypox virus, complete genome</BlastOutput_query-def>
  <BlastOutput_query-len>462</BlastOutput_query-len>
  <BlastOutput_param>
    <Parameters>
      <Parameters_expect>0.05</Parameters_expect>
      <Parameters_sc-match>1</Parameters_sc-match>
      <Parameters_sc-mismatch>-2</Parameters_sc-mismatch>
      <Parameters_gap-open>0</Parameters_gap-open>
      <Parameters_gap-extend>0</Parameters_gap-extend>
      <Parameters_filter>L;</Parameters_filter>
    </Parameters>
  </BlastOutput_param>
  <BlastOutput_iterations>
    <Iteration>
      <Iteration_iter-num>1</Iteration_iter-num>
      <Iteration_query-ID>Query_1</Iteration_query-ID>
      <Iteration_query-def>NC_003310.1:c48509-48048 Monkeypox virus, complete genome</Iteration_query-def>
      <Iteration_query-len>462</Iteration_query-len>
      <Iteration_hits>
        <Hit>
          <Hit_num>1</Hit_num>
          <Hit_id>gi|2967863541|emb|OZ254294.1|</Hit_id>
          <Hit_def>Monkeypox virus isolate 24MPX2634V genome assembly, complete genome: monopartite</Hit_def>
          <Hit_accession>OZ254294</Hit_accession>
          <Hit_len>196741</Hit_len>
          <Hit_hsps>
            <Hsp>
              <Hsp_num>1</Hsp_num>
              <Hsp_bit-score>828.419</Hsp_bit-score>
              <Hsp_score>448</Hsp_score>
              <Hsp_evalue>0</Hsp_evalue>
              <Hsp_query-from>1</Hsp_query-from>
              <Hsp_query-to>462</Hsp_query-to>
              <Hsp_hit-from>48487</Hsp_hit-from>
              <Hsp_hit-to>48026</Hsp_hit-to>
              <Hsp_query-frame>1</Hsp_query-frame>
              <Hsp_hit-frame>-1</Hsp_hit-frame>
              <Hsp_identity>462</Hsp_identity>
              <Hsp_positive>462</Hsp_positive>
              <Hsp_gaps>0</Hsp_gaps>
              <Hsp_align-len>462</Hsp_align-len>
              <Hsp_qseq>ATGGAGAAGCGAGAAGTTAATAAAGCTCTGTATGATCTTCAACGTAGTACTATGGTGTACAGTTCCGACGATACTCCTCCTCGTTGGTCTACGACAATGGATGCTGATACACGGCCTACAGATTCTGATGCTGATGCTATAATAGATGATGTATCCCGCGAAAAATCAATGAGAGAGGATAATAAGTCTTTTGATGATGTTATTCCGGTTAAAAAAATTATTTATTGGAAAGGTGTTAACCCTGTCACCGTTATTAATGAGTACTGCCAAATAACTAGGAGAGATTGGTCTTTTCGTATTGAATCAGTGGGGCCTAGTAACTCTCCTACATTTTATGCCTGTGTAGACATTGACGGAAGAGTATTCGATAAGGCAGATGGAAAATCTAAACGAGATGCTAAAAATAATGCAGCTAAATTGGCTGTAGATAAACTTCTTAGTTATGTCATCATTAGATTCTGA</Hsp_qseq>
              <Hsp_hseq>ATGGAGAAGCGAGAAGTTAATAAAGCTCTGTATGATCTTCAACGTAGTACTATGGTGTACAGTTCCGACGATACTCCTCCTCGTTGGTCTACGACAATGGATGCTGATACACGGCCTACAGATTCTGATGCTGATGCTATAATAGATGATGTATCCCGCGAAAAATCAATGAGAGAGGATAATAAGTCTTTTGATGATGTTATTCCGGTTAAAAAAATTATTTATTGGAAAGGTGTTAACCCTGTCACCGTTATTAATGAGTACTGCCAAATAACTAGGAGAGATTGGTCTTTTCGTATTGAATCAGTGGGGCCTAGTAACTCTCCTACATTTTATGCCTGTGTAGACATTGACGGAAGAGTATTCGATAAGGCAGATGGAAAATCTAAACGAGATGCTAAAAATAATGCAGCTAAATTGGCTGTAGATAAACTTCTTAGTTATGTCATCATTAGATTCTGA</Hsp_hseq>
              <Hsp_midline>||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||</Hsp_midline>
            </Hsp>
          </Hit_hsps>
        </Hit>
      </Iteration_hits>
      <Iteration_stat>
        <Statistics>
          <Statistics_db-num>1</Statistics_db-num>
          <Statistics_db-len>196741</Statistics_db-len>
        </Statistics>
      </Iteration_stat>
    </Iteration>
  </BlastOutput_iterations>
</BlastOutput>

For a newly submitted partitioned job, completed implies that content=merged and content=xml are ready. A 404 after results_ready=true is therefore a contract violation; keep the job id and request id for diagnosis rather than treating a shard-only archive as completion.

For tabular outfmt 7, the service preserves caller fields in their original order and appends any missing compatibility fields in this stable order: staxids, sscinames, stitle, qcovs, score. The merged output preserves the authoritative # Fields: header. Consumers should map columns by that header rather than a fixed count. outfmt 6 has no comment header by definition.

External ElasticBLAST Facade

The OpenAPI service also exposes a higher-level external integration contract under /api/v1/elastic-blast. Use it when a non-UI client wants stable submit, status, and file-download semantics without knowing the lower-level /v1/jobs result packaging modes.

Submit

curl -X POST "https://api.example.internal/api/v1/elastic-blast/submit" \
    -H "Content-Type: application/json" \
    -H "X-ELB-API-Token: <copied-token>" \
    --data-binary @- <<'JSON'
{
  "program": "blastn",
  "db": "core_nt",
  "query_fasta": ">NC_003310.1:c48509-48048 Monkeypox virus, complete genome\nATGGAGAAGCGAGAAGTTAATAAAGCTCTGTATGATCTTCAACGTAGTACTATGGTGTACAGTTCCGACG\nATACTCCTCCTCGTTGGTCTACGACAATGGATGCTGATACACGGCCTACAGATTCTGATGCTGATGCTAT\nAATAGATGATGTATCCCGCGAAAAATCAATGAGAGAGGATAATAAGTCTTTTGATGATGTTATTCCGGTT\nAAAAAAATTATTTATTGGAAAGGTGTTAACCCTGTCACCGTTATTAATGAGTACTGCCAAATAACTAGGA\nGAGATTGGTCTTTTCGTATTGAATCAGTGGGGCCTAGTAACTCTCCTACATTTTATGCCTGTGTAGACAT\nTGACGGAAGAGTATTCGATAAGGCAGATGGAAAATCTAAACGAGATGCTAAAAATAATGCAGCTAAATTG\nGCTGTAGATAAACTTCTTAGTTATGTCATCATTAGATTCTGA",
  "options": {
    "outfmt": 5,
    "word_size": 28,
    "dust": true,
    "evalue": 0.05,
    "max_target_seqs": 100
  },
  "priority": "normal",
  "idempotency_key": "external-core-nt-monkeypox-001",
  "resource_profile": "standard",
  "external_correlation_id": "notebook-core-nt-run-42"
}
JSON

Example response:

{
  "job_id": "17dfd2825089",
  "status": "queued",
  "created_at": "2026-05-21T06:15:30.125000+00:00",
  "db_name": "core_nt",
  "db_version": "2026-05-20-00-00-00",
  "submission_source": "external_api",
  "external_correlation_id": "notebook-core-nt-run-42",
  "queue_position": 1
}

Status

curl -H "X-ELB-API-Token: <copied-token>" \
    "https://api.example.internal/api/v1/elastic-blast/jobs/17dfd2825089"

Completed response example:

{
  "job_id": "17dfd2825089",
  "status": "success",
  "created_at": "2026-05-21T06:15:30.125000+00:00",
  "updated_at": "2026-05-21T06:24:10.817000+00:00",
  "completed_at": "2026-05-21T06:24:10.817000+00:00",
  "blast_version": "2.17.0+",
  "db_name": "core_nt",
  "db_version": "2026-05-20-00-00-00",
  "elapsed_seconds": 520,
  "queue_wait_seconds": 15,
  "run_seconds": 487,
  "execution": {
    "shard_count": 4,
    "shards_succeeded": 4,
    "shards_active": 0,
    "shards_failed": 0
  },
  "result": {
    "files": [
      {
        "file_id": "result-001",
        "filename": "batch_001.xml.gz",
        "format": "blast_xml",
        "size_bytes": 18420
      }
    ]
  }
}

Download A Result File

Use the file_id returned under result.files[]:

curl -L -H "X-ELB-API-Token: <copied-token>" \
    "https://api.example.internal/api/v1/elastic-blast/jobs/17dfd2825089/files/result-001" \
    -o batch_001.xml.gz

The file route returns 409 until the external job status is success. It streams the result file through the OpenAPI service and does not expose a browser-facing SAS URL.

Response Contract

The OpenAPI service and the dashboard wrapper both treat BLAST submission as asynchronous work. A 2xx response means the request was accepted or a current state was returned; it does not mean the BLAST run has completed successfully.

Dashboard API responses keep their existing top-level fields and add four compatibility fields for new clients:

  • operation: control-plane work to poll, including operation_id, state, poll_after_seconds, and links such as /api/operations/{operation_id}.
  • target: the BLAST job resource identity. It separates the Dashboard UUID from the short OpenAPI job_id.
  • admission: the point-in-time queue and capacity decision. Treat this as a snapshot, not a completion guarantee.
  • meta: request correlation data such as request_id for logs and support.

Use the right identifier for the endpoint you are calling. The status endpoint is named GET /v1/jobs/{job_id}/status for OpenAPI compatibility, but that path parameter means OpenAPI job id, not Dashboard job UUID.

Identifier Example Use with
OpenAPI job id 17dfd2825089 /v1/jobs/{job_id}/status, /v1/jobs/{job_id}/results, /api/v1/elastic-blast/jobs/{job_id}
Dashboard job UUID bb61858a-8cb6-4590-a2e3-c144662851f7 /blast/jobs/<uuid> and /api/blast/jobs/{uuid}

The API Reference page labels the status path parameter as OpenAPI job id and shows a job_id = OpenAPI id hint next to job-scoped status routes.

{
  "job_id": "bb61858a-8cb6-4590-a2e3-c144662851f7",
  "job_id_kind": "dashboard",
  "status": "queued",
  "operation_status_url": "/api/operations/task-123",
  "operation": {
    "operation_id": "task-123",
    "operation_type": "blast.submit",
    "state": "queued",
    "poll_after_seconds": 5
  },
  "target": {
    "resource_type": "blast_job",
    "job_id_kind": "dashboard",
    "dashboard_job_id": "bb61858a-8cb6-4590-a2e3-c144662851f7",
    "openapi_job_id": "17dfd2825089"
  },
  "admission": {
    "decision": "accepted",
    "reason": "queued_for_blast_execution"
  },
  "meta": {
    "request_id": "01HX7V8W4D9Y3F9PZQ2QK4N7RA"
  }
}

The in-page response contract panel uses the same model:

Field Meaning Client behavior
operation Control-plane work accepted by the dashboard Poll operation.links.self or the documented status URL until terminal.
target BLAST resource identity Use the OpenAPI id for OpenAPI routes and Dashboard UUID for Dashboard routes.
admission Queue/capacity decision at accept time Treat as a snapshot; it is not a completion guarantee.
meta Correlation and support metadata Keep request_id in client logs.

Error Codes

The OpenAPI service and the dashboard backend both return JSON error bodies. Every error response shares the same envelope so clients can route on status and surface detail directly to users:

{
  "detail": "<human-readable message or field-level error list>",
  "request_id": "<correlation id, when emitted by the dashboard>"
}

422 ValidationError returns detail as a list of per-field objects produced by FastAPI's request validator. All other codes use a string detail. The dashboard backend stamps request_id on every response (success and error) — quote that value in support tickets so the request can be correlated to logs.

Code Label When it is returned Response body Client action
202 JobSubmitAccepted POST /v1/jobs or POST /api/v1/elastic-blast/submit accepted the request and queued BLAST work. Completion is still pending. Submit payload with job_id, status, and status_url. Poll the status endpoint until terminal (completed / success / failed / cancelled).
400 InvalidRequest Request shape, query parameter, or identifier is malformed. Typical causes: Dashboard UUID used where an OpenAPI job id is required, unknown content value on result routes, missing required path parameter. {"detail": "<message>"} Fix the identifier or parameter and resubmit. For status routes, use the short id returned by POST /v1/jobs.
401 Unauthorized X-ELB-API-Token is missing, expired, or does not match the configured OpenAPI token secret. Dashboard MSAL routes use this when the bearer token cannot be validated. {"detail": "<reason>"} Copy the current token from the API token panel (or refresh the MSAL session for dashboard routes) and retry. Regenerate the token only when rotating credentials.
404 NotFound Job id, file id, or result artifact does not exist. Result routes also return 404 when the job is completed but the merger has not published merged_results.out.gz yet. {"detail": "<message>"} Confirm the id is the OpenAPI short id. For result routes, poll status until terminal and try content=full if content=xml is missing.
409 Conflict Current job, cluster, or shard state does not allow this operation. Examples: external file download requested before status reached success; submit attempted while a conflicting job with the same idempotency_key is already running. {"detail": "<reason>"} Poll status until the precondition is met, or supply a fresh idempotency_key.
422 ValidationError One or more request fields failed schema validation (FastAPI request body / query parsing). {"detail": [{"loc": [...], "msg": "...", "type": "..."}, ...]} Inspect each loc path, correct the offending field, and resubmit.
429 AdmissionRejected Queue depth or runtime capacity cannot accept more work yet. A Retry-After header is included when the service can suggest a wait window. {"detail": "<reason>"} plus optional Retry-After. Wait for Retry-After (or the dashboard's poll hint) and reduce concurrent submissions before retrying.
500 RuntimeFailure (server error) Unexpected failure inside the control plane or ElasticBLAST runtime — for example an Azure SDK call raised, the OpenAPI pod crashed, or a Celery task hit an unhandled exception. The response body includes the failure detail so clients and operators can see what went wrong without reading server logs. {"detail": "<error message>", "request_id": "<rid>"} — for handled cases the route supplies a focused message (e.g. failed to create ACR: <sanitised reason>); the catch-all handler returns "internal server error" with the same request_id. Capture request_id, the endpoint path, the job id (if any), and the detail text. If detail already names the cause (quota, permission, missing resource), act on it; otherwise share the bundle with the operator. Retry only after a transient cause is confirmed.
502 / 503 / 504 Upstream / availability errors Dashboard could not reach the OpenAPI pod, AKS API server, or Storage; or the pod is restarting. {"detail": "<reason>"} plus optional Retry-After. Check Dashboard cluster card and OpenAPI deployment status; retry after the upstream recovers.

500 always carries content

A 500 response is never an empty body — the dashboard's global exception handler always returns JSON with detail and request_id, and the OpenAPI service's RuntimeFailure row contains the failure message. If your client treats 5xx as "no detail available", update it to log the detail and request_id from the response body.

Troubleshooting

This table is symptom-first; for the JSON shape and meaning of each status code see Error Codes above.

Symptom Likely cause What to do
Configure Subscription and Workload RG No saved workspace config Re-run Dashboard setup wizard.
OpenAPI service not found AKS service or deployment is missing Build elb-openapi, then use the deploy panel on this page.
Cluster stopped AKS exists but is not running Start the cluster from Cluster Plane before using API Reference.
Token not configured OpenAPI token secret has not been generated Use Generate in the API token panel.
401 on Try or external call Missing or wrong X-ELB-API-Token Copy the current token and retry.
400 on status Dashboard UUID used where OpenAPI job id is required Use the short id returned by POST /v1/jobs.
404 on results Job not complete, wrong job id, or merged result not published Poll status; try content=full if content=xml is missing.
409 on external file route External job has not reached success Poll /api/v1/elastic-blast/jobs/{job_id} first.
429 Queue/capacity rejected work Honour Retry-After or the dashboard poll window and reduce concurrent submissions.
5xx with empty-looking body Client logged only the status code Read the response body — 500 always includes a detail string and request_id. Capture both for support.

Safe Screenshot Practice

Before publishing API Reference screenshots, make sure the page does not expose subscription IDs, tenant-specific hostnames, raw API tokens, or private resource names. The screenshot above uses a masked example API endpoint and does not reveal a token value.
